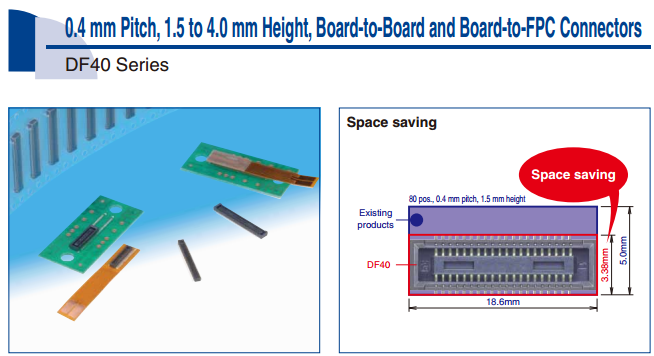

夹层连接器原装进口Hirose Connector DF40C(2.0)-70DS-0.4V(51)
价格：￥
联系人：万小姐、龚先生、周小姐，肖小姐，张小姐，程先生 联系电话：0755-83722245,0755-28194352,075528193653,28197027分机806,83722245,29806019,0791-86663634,0791-86227604
产品保证货真价实诚实守信

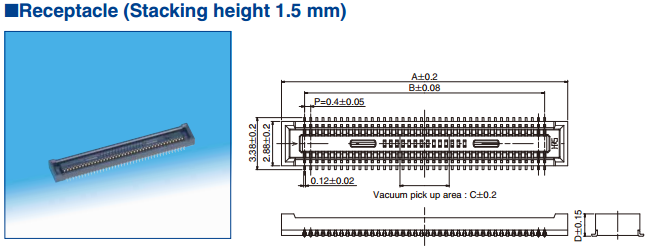

Part No. HRS No. No. of Contacts A B C D RoHS
DF40C-10DS-0.4V(51) CL684-4036-2-51 10 4.6 1.6 1.0 1.45
○
DF40C-12DS-0.4V(51) Under development 12 5.0 2.0 1.0 1.45
DF40C-20DS-0.4V(51) CL684-4005-9-51 20 6.6 3.6 1.0 1.45
DF40C-24DS-0.4V(51) CL684-4006-1-51 24 7.4 4.4 1.2 1.45
DF40C-30DS-0.4V(51) CL684-4007-4-51 30 8.6 5.6 1.5 1.45
DF40C-34DS-0.4V(51) CL684-4023-0-51 34 9.4 6.4 2.3 1.45
DF40C-40DS-0.4V(51) CL684-4008-7-51 40 10.6 7.6 3.2 1.45
DF40C-50DS-0.4V(51) CL684-4009-0-51 50 12.6 9.6 3.2 1.45
DF40C-60DS-0.4V(51) CL684-4004-6-51 60 14.6 11.6 3.2 1.45
DF40C-70DS-0.4V(51) CL684-4016-5-51 70 16.6 13.6 3.2 1.45
DF40C-80DS-0.4V(51) CL684-4002-0-51 80 18.6 15.6 3.2 1.45
DF40C-90DS-0.4V(51) CL684-4124-8-51 90 20.6 17.6 3.2 1.45
DF40C-100DS-0.4V(51) CL684-4033-4-51 100 22.6 19.6 3.2 1.45

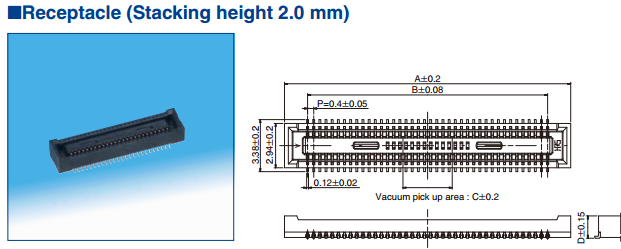

DF40C(2.0)-12DS-0.4V(51) CL684-4148-6-51 12 5.0 2.0 1.0 1.95
○
DF40C(2.0)-20DS-0.4V(51) CL684-4040-0-51 20 6.6 3.6 1.0 1.95
DF40C(2.0)-24DS-0.4V(51) CL684-4021-2-51 24 7.4 4.4 1.2 1.95
DF40C(2.0)-30DS-0.4V(51) CL684-4058-5-51 30 8.6 5.6 1.5 1.95
DF40C(2.0)-40DS-0.4V(51) CL684-4042-5-51 40 10.6 7.6 3.2 1.95
DF40C(2.0)-50DS-0.4V(51) CL684-4091-0-51 50 12.6 9.6 3.2 1.95
DF40C(2.0)-60DS-0.4V(51) CL684-4034-7-51 60 14.6 11.6 3.2 1.95
DF40C(2.0)-70DS-0.4V(51) CL684-4147-3-51 70 16.6 13.6 3.2 1.95
DF40C(2.0)-80DS-0.4V(51) CL684-4132-6-51 80 18.6 15.6 3.2 1.95
DF40HC(2.5)-10DS-0.4V(51) Under development 10 4.6 1.6 1.0 2.4
○
DF40HC(2.5)-20DS-0.4V(51) CL684-4126-3-51 20 6.6 3.6 1.0 2.4
DF40HC(2.5)-40DS-0.4V(51) CL684-4112-9-51 40 10.6 7.6 3.2 2.4
DF40HC(2.5)-50DS-0.4V(51) CL684-4101-2-51 50 12.6 9.6 3.2 2.4
DF40HC(2.5)-60DS-0.4V(51) CL684-4085-8-51 60 14.6 11.6 3.2 2.4
DF40HC(3.0)-30DS-0.4V(51) CL684-4098-0-51 30 8.6 5.6 1.5 2.9
○
DF40HC(3.0)-44DS-0.4V(51) CL684-4076-7-51 44 11.4 8.4 3.2 2.9
DF40HC(3.0)-50DS-0.4V(51) CL684-4099-2-51 50 12.6 9.6 3.2 2.9
DF40HC(3.0)-60DS-0.4V(51) CL684-4100-0-51 60 14.6 11.6 3.2 2.9
DF40HC(3.0)-70DS-0.4V(51) CL684-4138-2-51 70 16.6 13.6 3.2 2.9
DF40HC(3.0)-80DS-0.4V(51) CL684-4180-9-51 80 18.6 15.6 3.2 2.9
DF40HC(3.0)-90DS-0.4V(51) CL684-4161-4-51 90 20.6 17.6 3.2 2.9
DF40HC(3.0)-100DS-0.4V(51) CL684-4151-0-51 100 22.6 19.6 3.2 2.9
DF40HC(3.5)-20DS-0.4V(51) CL684-4188-0-51 20 6.6 3.6 1.0 3.4
○
DF40HC(3.5)-30DS-0.4V(51) CL684-4136-7-51 30 8.6 5.6 1.5 3.4
DF40HC(3.5)-40DS-0.4V(51) CL684-4209-9-51 40 10.6 7.6 3.2 3.4
DF40HC(3.5)-50DS-0.4V(51) CL684-4109-4-51 50 12.6 9.6 3.2 3.4
DF40HC(3.5)-60DS-0.4V(51) CL684-4102-5-51 60 14.6 11.6 3.2 3.4
DF40HC(3.5)-80DS-0.4V(51) CL684-4162-7-51 80 18.6 15.6 3.2 3.4
DF40HC(4.0)-40DS-0.4V(51) Under development 40 10.6 7.6 3.2 3.9
○
DF40HC(4.0)-50DS-0.4V(51) Under development 50 12.6 9.6 3.2 3.9
DF40HC(4.0)-60DS-0.4V(51) CL684-4133-9-51 60 14.6 11.6 3.2 3.9
DF40HC(4.0)-80DS-0.4V(51) CL684-4140-4-51 80 18.6 15.6 3.2 3.9
DF40HC(4.0)-90DS-0.4V(51) CL684-4165-5-51 90 20.6 17.6 3.2 3.9

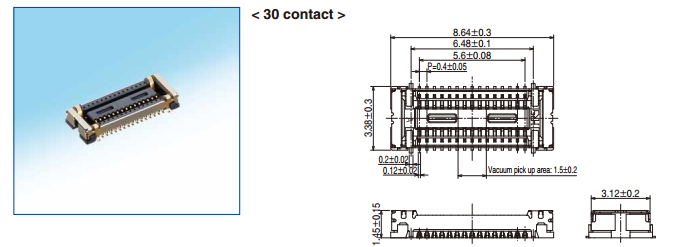

DF40GB(1.5)-30DS-0.4V(51) CL684-4198-4-51 30 30 4 ○
DF40GB(1.5)-48DS-0.4V(51) CL684-4194-3-51 48 40 12
DF40C-10DP-0.4V(51) CL684-4035-0-51 10 3.52 1.6 1.0
○
DF40C-12DP-0.4V(51) CL684-4149-9-51 12 3.92 2.0 1.0
DF40C-20DP-0.4V(51) CL684-4010-9-51 20 5.52 3.6 1.0
DF40C-24DP-0.4V(51) CL684-4011-1-51 24 6.32 4.4 1.2
DF40C-30DP-0.4V(51) CL684-4012-4-51 30 7.52 5.6 1.5
DF40C-34DP-0.4V(51) CL684-4024-3-51 34 8.32 6.4 2.3
DF40C-40DP-0.4V(51) CL684-4013-7-51 40 9.52 7.6 3.2
DF40C-44DP-0.4V(51) CL684-4077-0-51 44 10.32 8.4 3.2
DF40C-50DP-0.4V(51) CL684-4014-0-51 50 11.52 9.6 3.2
DF40C-60DP-0.4V(51) CL684-4003-3-51 60 13.52 11.6 3.2
DF40C-70DP-0.4V(51) CL684-4015-2-51 70 15.52 13.6 3.2
DF40C-80DP-0.4V(51) CL684-4001-8-51 80 17.52 15.6 3.2
DF40C-90DP-0.4V(51) CL684-4125-0-51 90 19.52 17.6 3.2
DF40C-100DP-0.4V(51) CL684-4032-1-51 100 21.52 19.6 3.2

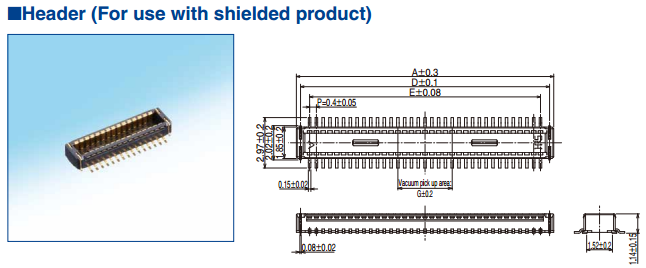

DF40GB-30DP-0.4V(51) CL684-4200-4-51 10 7.16 6.67 5.6 8.74 7.32 6.12 1.5
DF40GB-48DP-0.4V(51) CL684-4195-6-51 12 10.76 10.27 9.2 12.34 10.92 9.72 3.2 ○
DF40GB-70DP-0.4V(51) CL684-4199-7-51 20 15.16 14.67 13.6 16.74 15.32 14.12 3.2
DF40C-10DS-0.4V(51) 16 － 7.5 21.5 17.5
DF40C-12DS-0.4V(51) 16 － 7.5 21.5 17.5
DF40C-20DS-0.4V(51) 16 － 7.5 21.5 17.5
DF40C-24DS-0.4V(51) 16 － 7.5 21.5 17.5
DF40C-30DS-0.4V(51) 24 － 11.5 29.5 25.5
DF40C-34DS-0.4V(51) 24 － 11.5 29.5 25.5
DF40C-40DS-0.4V(51) 24 － 11.5 29.5 25.5
DF40C-50DS-0.4V(51) 24 － 11.5 29.5 25.5
DF40C-60DS-0.4V(51) 24 － 11.5 29.5 25.5
DF40C-70DS-0.4V(51) 32 28.4 14.2 37.5 33.5
DF40C-80DS-0.4V(51) 32 28.4 14.2 37.5 33.5
DF40C-90DS-0.4V(51) 44 40.4 20.2 49.5 45.5
DF40C-100DS-0.4V(51) 44 40.4 20.2 49.5 45.5
DF40GB(1.5)-30DS-0.4V(51) 24 － 11.5 29.5 25.5
DF40GB(1.5)-48DS-0.4V(51) 24 － 11.5 29.5 25.5
DF40C(2.0)-12DS-0.4V(51) 16 － 7.5 21.5 17.5 2.2
DF40C(2.0)-20DS-0.4V(51) 16 － 7.5 21.5 17.5 2.2
DF40C(2.0)-24DS-0.4V(51) 16 － 7.5 21.5 17.5 2.2
DF40C(2.0)-30DS-0.4V(51) 24 － 11.5 29.5 25.5 2.2
DF40C(2.0)-40DS-0.4V(51) 24 － 11.5 29.5 25.5 2.2
DF40C(2.0)-50DS-0.4V(51) 24 － 11.5 29.5 25.5 2.2
DF40C(2.0)-60DS-0.4V(51) 24 － 11.5 29.5 25.5 2.2
DF40C(2.0)-70DS-0.4V(51) 32 28.4 14.2 37.5 33.5 2.2
DF40C(2.0)-80DS-0.4V(51) 32 28.4 14.2 37.5 33.5 2.2
■Stacking height 2.5 mm Unit: mm
Part No. A B C D E F
DF40HC(2.5)-10DS-0.4V(51) 16 － 7.5 21.5 17.5 2.72
DF40HC(2.5)-20DS-0.4V(51) 16 － 7.5 21.5 17.5 2.72
DF40HC(2.5)-40DS-0.4V(51) 24 － 11.5 29.5 25.5 2.72
DF40HC(2.5)-50DS-0.4V(51) 24 － 11.5 29.5 25.5 2.72
DF40HC(2.5)-60DS-0.4V(51) 24 － 11.5 29.5 25.5 2.72
DF40HC(3.0)-30DS-0.4V(51) 24 － 11.5 29.5 25.5 3.15
DF40HC(3.0)-44DS-0.4V(51) 24 － 11.5 29.5 25.5 3.15
DF40HC(3.0)-50DS-0.4V(51) 24 － 11.5 29.5 25.5 3.15
DF40HC(3.0)-60DS-0.4V(51) 24 － 11.5 29.5 25.5 3.15
DF40HC(3.0)-70DS-0.4V(51) 32 28.4 14.2 37.5 33.5 3.15
DF40HC(3.0)-80DS-0.4V(51) 32 28.4 14.2 37.5 33.5 3.15
DF40HC(3.0)-90DS-0.4V(51) 44 40.4 20.2 49.5 45.5 3.15
DF40HC(3.0)-100DS-0.4V(51) 44 40.4 20.2 49.5 45.5 3.15
DF40GB(3.0)-48DS-0.4V(51) 24 － 11.5 29.5 25.5 3.15
DF40GB(3.0)-70DS-0.4V(51) 32 28.4 14.2 37.5 33.5 3.15
DF40HC(3.5)-20DS-0.4V(51) 16 － 7.5 21.5 17.5 3.72
DF40HC(3.5)-30DS-0.4V(51) 24 － 11.5 29.5 25.5 3.72
DF40HC(3.5)-50DS-0.4V(51) 24 － 11.5 29.5 25.5 3.72
DF40HC(3.5)-60DS-0.4V(51) 24 － 11.5 29.5 25.5 3.72
Part No. A B CDEF
DF40HC(4.0)-40DS-0.4V(51) 24 － 11.5 29.5 25.5 4.15
DF40HC(4.0)-50DS-0.4V(51) 24 － 11.5 29.5 25.5 4.15
DF40HC(4.0)-60DS-0.4V(51) 24 － 11.5 29.5 25.5 4.15
DF40HC(4.0)-80DS-0.4V(51) 32 28.4 14.2 37.5 33.5 4.15
DF40HC(4.0)-90DS-0.4V(51) 44 40.4 20.2 49.5 45.5 4.15
DF40C-10DP-0.4V(51) 12 － 5.5 17.5 13.5
DF40C-12DP-0.4V(51) 12 － 5.5 17.5 13.5
DF40C-20DP-0.4V(51) 16 － 7.5 21.5 17.5
DF40C-24DP-0.4V(51) 16 － 7.5 21.5 17.5
DF40C-30DP-0.4V(51) 16 － 7.5 21.5 17.5
DF40C-34DP-0.4V(51) 24 － 11.5 29.5 25.5
DF40C-40DP-0.4V(51) 24 － 11.5 29.5 25.5
DF40C-44DP-0.4V(51) 24 － 11.5 29.5 25.5
DF40C-50DP-0.4V(51) 24 － 11.5 29.5 25.5
DF40C-60DP-0.4V(51) 24 － 11.5 29.5 25.5
DF40C-70DP-0.4V(51) 32 28.4 14.2 37.5 33.5
DF40C-80DP-0.4V(51) 32 28.4 14.2 37.5 33.5
DF40C-90DP-0.4V(51) 44 40.4 20.2 49.5 45.5
DF40C-100DP-0.4V(51) 44 40.4 20.2 49.5 45.5
DF40GB-30DP-0.4V(51) 16 － 7.5 21.5 17.5
DF40GB-48DP-0.4V(51) 24 － 11.5 29.5 25.5
DF40GB-70DP-0.4V(51) 24 － 11.5 29.5 25.5
Hirose Electric:
DF40C-80DP-0.4V(51) DF40C-80DS-0.4V(51) DF40C-60DP-0.4V(51) DF40C-60DS-0.4V(51) DF40C-20DS-
0.4V(51) DF40C-24DS-0.4V(51) DF40C-30DS-0.4V(51) DF40C-40DS-0.4V(51) DF40C-50DS-0.4V(51) DF40C-
20DP-0.4V(51) DF40C-24DP-0.4V(51) DF40C-30DP-0.4V(51) DF40C-40DP-0.4V(51) DF40C-50DP-0.4V(51)
DF40C-100DP-0.4V(51) DF40C-100DS-0.4V(51) DF40C-10DP-0.4V(51) DF40C-10DS-0.4V(51) DF40C(2.0)-20DS-
0.4V(51) DF40C(2.0)-50DS-0.4V(51) DF40C(2.0)-60DS-0.4V(51) DF40C-44DP-0.4V(51) DF40HB(4.0)-50DS-
0.4V(51) DF40HC(2.5)-20DS-0.4V(51) DF40HC(2.5)-50DS-0.4V(51) DF40HC(3.0)-30DS-0.4V(51) DF40HC(3.0)-
44DS-0.4V(51) DF40HC(3.0)-50DS-0.4V(51) DF40HC(3.0)-60DS-0.4V(51) DF40HC(3.5)-60DS-0.4V(51) DF40C-
70DP-0.4V(51) DF40C-70DS-0.4V(51) DF40C(2.0)-80DS-0.4V(51) DF40HC(2.5)-60DS-0.4V(51) DF40HC(3.5)-30DS-
0.4V(51) DF40HC(3.5)-50DS-0.4V(51) DF40C-90DP-0.4V(51) DF40C-90DS-0.4V(51) DF40C(2.0)-30DS-0.4V(51)
DF40C(2.0)-40DS-0.4V(51) DF40C(2.0)-40DS-0.4V(70) DF40C(2.0)-44DS-0.4V(70) DF40C(2.0)-50DS-0.4V(52)
DF40C(2.0)-50DS-0.4V(70) DF40C(2.0)-60DS-0.4V(70) DF40C(2.0)-70DS-0.4V(51) DF40C-12DP-0.4V(51) DF40C-
20DS-0.4V(70) DF40C-30DS-0.4V(70) DF40C-40DS-0.4V(70) DF40C-50DS-0.4V(70) DF40C-60DS-0.4V(70)
DF40C-70DS-0.4V(52) DF40C-70DS-0.4V(70) DF40HC(2.5)-30DS-0.4V(70) DF40HC(2.5)-40DS-0.4V(70)
DF40HC(2.5)-50DS-0.4V(70) DF40HC(3.0)-30DS-0.4V(70) DF40HC(3.0)-50DS-0.4V(70) DF40HC(3.0)-60DS-0.4V(70)
DF40HC(3.5)-50DS-0.4V(70) DF40HC(3.5)-60DS-0.4V(70) DF40HC(4.0)-40DS-0.4V(70) DF40HC(4.0)-60DS-
0.4V(51) DF40HC(4.0)-80DS-0.4V(51) DF40HC(3.0)-90DS-0.4V(51) DF40HC(3.5)-80DS-0.4V(51) DF40HC(4.0)-
90DS-0.4V(51) DF40C-80DP-0.4V(58) DF40C-20DS-0.4V(58) DF40C-24DS-0.4V(58) DF40C-40DS-0.4V(58)
DF40C-50DS-0.4V(58) DF40C-24DP-0.4V(58) DF40C-40DP-0.4V(58) DF40C-50DP-0.4V(58) DF40C-70DP-0.4V(58)
DF40C-100DS-0.4V(58) DF40C-10DS-0.4V(58) DF40C(2.0)-24DS-0.4V(51) DF40C(2.0)-24DS-0.4V(58)
DF40C(2.0)-40DS-0.4V(58) DF40C(2.0)-30DS-0.4V(58) DF40HC(3.0)-44DS-0.4V(58) DF40HC(2.5)-50DS-0.4V(58)
DF40HC(2.5)-40DS-0.4V(51) DF40HC(2.5)-40DS-0.4V(58) DF40C(2.0)-80DS-0.4V(58) DF40HC(4.0)-60DS-0.4V(58)
DF40HC(4.0)-80DS-0.4V(58) DF40C-12DP-0.4V(58) DF40HC(3.0)-100DS-0.4V(58 DF40HC(3.5)-80DS-0.4V(58)
DF40HC(3.0)-80DS-0.4V(58) DF40C-30DS-0.4V(58) DF40C(2.0)-50DS-0.4V(58) DF40C-60DS-0.4V(58)
DF40HC(3.5)-50DS-0.4V(58) DF40C(2.0)-20DS-0.4V(58) DF40HC(3.0)-50DS-0.4V(58)
