限位开关原装进口LS2D3N

价格：￥

联系人：万小姐、龚先生、周小姐，肖小姐，张小姐，程先生联系电话：0755-83722245,0755-28194352,075528193653,28197027分机806,83722245,29806019,0791-86663634,0791-86227604

QQ联系

产品保证货真价实诚实守信

产品详情

型号：
品牌/商标：
生产厂家：
产品类别：
机电产品- 开关、继电器、编码器
规格：

深圳市原力达电子有限公司

TEL:0791-86227904 0755-29806019 联系人：程先生/万小姐 QQ:2182622645 956175644

深圳分公司：深圳龙华区大浪街道高峰路佳利科技大厦603-603A

南昌分公司：南昌市高新区京东路恒大高新研发楼606-607

香港分公司：ROOM 803,CHEVALIER HOUSE 45-51

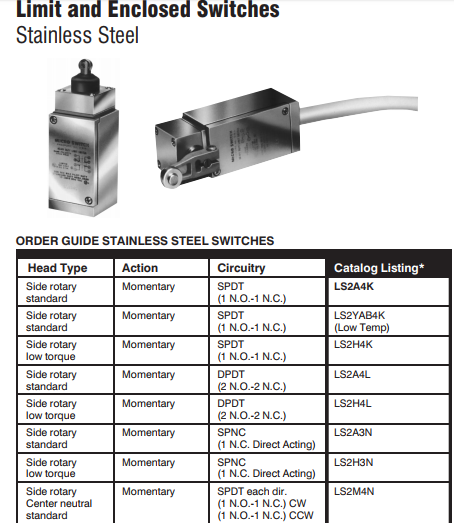

Side rotary Momentary SPDT LS2A4K

standard (1 N.O.-1 N.C.)

Side rotary Momentary SPDT LS2YAB4K

standard (1 N.O.-1 N.C.) (Low Temp)

Side rotary Momentary SPDT LS2H4K

low torque (1 N.O.-1 N.C.)

Side rotary Momentary DPDT LS2A4L

standard (2 N.O.-2 N.C.)

Side rotary Momentary DPDT LS2H4L

low torque (2 N.O.-2 N.C.)

Side rotary Momentary SPNC LS2A3N

standard (1 N.C. Direct Acting)

Side rotary Momentary SPNC LS2H3N

low torque (1 N.C. Direct Acting)

Side rotary Momentary SPDT each dir. LS2M4N

Center neutral (1 N.O.-1 N.C.) CW

standard (1 N.O.-1 N.C.) CCW

Side rotary Maintained SPDT LS2N3K

(1 N.O.-1 N.C.) (1⁄2N conduit)

Side plunger Momentary SPDT LS2E4K

(1 N.O.-1 N.C.)

Side plunger Momentary DPDT LS2E4L

(2 N.O.-2 N.C.)

Side roller Momentary SPDT LS2F4K

plunger (1 N.O.-1 N.C.)

Side roller Momentary DPDT LS2F4L

plunger (2 N.O.-2 N.C.)

Top roller Momentary SPNC LS2D3N

plunger (1 N.C. Direct Acting)

Top roller Momentary SPDT LS2D4K

plunger (1 N.O.-1 N.C.)

Top roller Momentary DPDT LS2D4L

plunger (2 N.O.-2 N.C.)

*SPDT 6 foot preleaded versions: add a C to the catalog listing. DPDT 6 foot preleaded versions; add M

to the catalog listing. Example: LS2A4KC. For custom lead lengths, contact the 800 number.

ORDER GUIDE STAINLESS STEEL LEVERS

Radius (In.) Dia. (In.) Width (In.) Catalog Listing

Std. Roller Lever 1.5 .75 .25 LS2Z51B

Adjustable Radius 1.5-3.5 .75 .25 LS2Z52B

Rod 13.0 — — LS2Z54N
