Gumstix Overo Conduit LoRa Gateway

Gumstix Overo® Conduit LoRa Gateway is an Ethernet-connected expansion board for Gumstix Overo Computer-on-Modules (COMs). This board, combined with an Overo COM, a RisingHF RHF0M301 Lo-RaWAN Gateway/Concentrator Module, and a sub-GHz antenna, acts as a Wide Area Network (WAN) hub for IoT devices.

DOCUMENTS

• Specifications

• Quickstart Guide

FEATURES

• 2x 70-pin AVX connectors for use with Gumstix Overo Computer-on-Module

• 24-pin SPI connector for RisingHF RHF0M301 LoRa Gateway and Concentrator Module

• Ethernet 10/100 Base-T RJ-45

• Micro USB port

• Microchip Technology LAN9221 Ethernet Controller

• FTDI FT232RQ USB UART Interface

• Texas Instruments TPS6211 Voltage Regulator

• Power LED

• Programmable LED

• Reset pushbutton

• Programmable Pushbutton

• 5V barrel connector

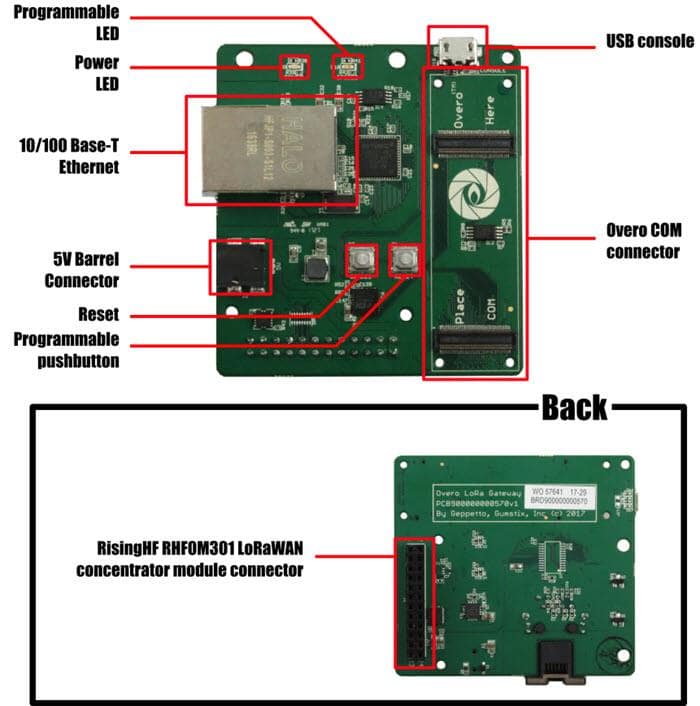

BOARD LAYOUT
