Gumstix Raspberry Pi Newgate Breakout Board

Gumstix Raspebrry Pi Newgate Breakout Board allows developers to connect to any and all of the Raspberry Pi Compute Module or Compute Module 3 pins. Digital, analog, and differential signals can easily be monitored via 0.1" pitch pins. The headers on each side of the board provide 3 terminals for each pin of the 200-pin SODIMM connector, and a USB micro B port provides a UART console connection. A set of level shifters accommodate 3.3V and 1.8V logic levels for peripheral devices.

DOCUMENTS

• Datasheet

• Technical Reference

FEATURES

• 120-pin headers breakout all pins of Raspberry Pi Compute Module or Compute Module 3

• SODIMM connector to DDR2 200-pin module

• FTDI FT232RQ USB UART Interface

• Micro USB B

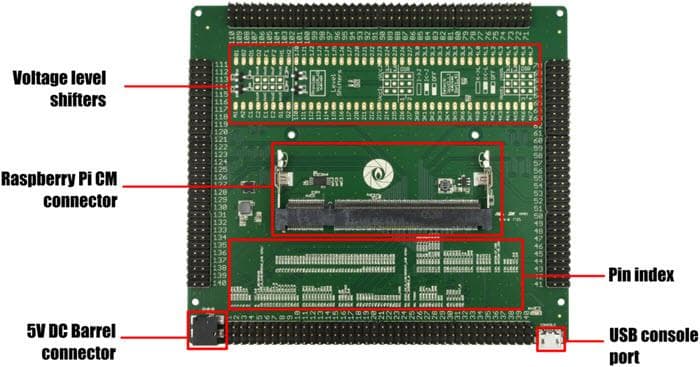

BOARD LAYOUT

ASSOCIATED PRODUCTS

• Raspberry Pi

• Raspberry Pi Compute Module 3

• FTDI FT232RQ USB UART Interface
