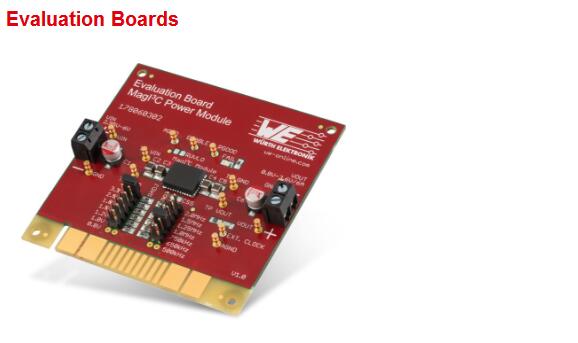

178960501 WUrth开发板
| SPEC | Order Code | Ui | UO | IO (A) | Evaluation Board | Files | Samples |
|---|---|---|---|---|---|---|---|
| 178960501 | 2.7 - 5.5 V | 0.6 - 5.5 V | 0.6 | 171960501 | EAGLE_LAYOUT_171960501 (rev1)(2).zipGERBER_171960501 (rev1)(2).zip | ||
| 178020302 | 2.95 - 6 V | 0.8 - 3.6 V | 2 | 171020302 | Eagle_Layout-1780x0302 (rev1.0).zipGerber_1780x0302 (rev1.0).zip | ||
| 178060302 | 2.95 - 6 V | 0.8 - 3.6 V | 6 | 171060302 | Eagle_Layout-1780x0302 (rev1.0).zipGerber_1780x0302 (rev1.0).zip | ||
| 178040302 | 2.96 - 6 V | 0.8 - 3.6 V | 4 | 171040302 | Eagle_Layout-1780x0302 (rev1.0).zipGerber_1780x0302 (rev1.0).zip | ||
| 178050601 | 6 - 36 V | 0.8 - 6 V | 5 | 171050601 | Eagle_Layout_178050601 (rev1).zipGerber_178050601 (rev1)(2).zip | ||
| 178010601 | 6 - 42 V | 0.8 - 6 V | 1 | 171010601 | EAGLE_LAYOUT_178010601 (rev1)(2).zipGERBER_178010601 (rev1)(3).zip | ||
| 178012401 | 6 - 42 V | 5 - 24 V | 1 | 171012401 | Eagle-Layout_178012401 (rev1).zipGerber_178012401 (rev1)(2).zip | ||
| 178012402 | 6 - 42 V | 5 - 24 V | 1.5 | 171012402 | Eagle_Layout_178012402 (rev1).zipGerber_178012402 (rev1)(2).zip | ||
| 178020601 | 6 - 42 V | 0.8 - 6 V | 2 | 171020601 | Eagle_Layout-178020601 (rev1).zipGerber_178020601 (rev1)(2).zip | ||
| 178030601 | 6 - 42 V | 0.8 - 6 V | 3 | 171030601 | EAGLE_LAYOUT_178030601 (rev1)(2).zipGERBER_178030601 (rev1)(3).zip | ||
| 178032401 | 6 - 42 V | 5 - 24 V | 3 | 171032401 | Eagle_Layout_178032401 (rev1).zipGerber_178032401 (rev1)(2).zip | ||
| 178021501 | 7 - 50 V | 2.5 - 15 V | 2.5 | 171021501 | Eagle_Layout_178021501 (rev2.0).zipGerber_178021501 (rev2.0).zip |
