| 7447966 | 4.7 | 35 | 15 | 1.8 | 744790 | ||
| 74479668 | 6.8 | 35 | 5 | 1.7 | 744790 | ||
| 7447967 | 8.2 | 35 | 5 | 2.1 | 744790 | ||
| 7447968 | 10 | 30 | 3 | 1.85 | 744790 |
| SPEC | Order Code | L1 (µH) | Qmin. | IR 1 (mA) | RDC1 max. (Ω) | Design Kit | Samples |
|---|---|---|---|---|---|---|---|
| 74479614 | 0.047 | 10 | 50 | 0.25 | 744790 | ||
| 74479616 | 0.068 | 10 | 50 | 0.25 | |||
| 7447962 | 0.1 | 15 | 50 | 0.5 | 744790 | ||
| 74479623 | 0.22 | 15 | 50 | 0.8 | 744790 | ||
| 744796233 | 0.33 | 15 | 35 | 0.8 | |||
| 74479632 | 0.47 | 15 | 35 | 1 | 744790 | ||
| 74479645 | 0.56 | 15 | 35 | 1.55 | 744790 | ||
| 7447964 | 0.68 | 15 | 35 | 1.7 | |||
| 74479628 | 0.82 | 15 | 35 | 2.1 | |||
| 7447965 | 1 | 35 | 25 | 0.6 | 744790 | ||
| 744796215 | 1.5 | 35 | 25 | 0.8 | |||
| 74479651 | 1.8 | 35 | 25 | 0.8 | |||
| 74479652 | 2.2 | 35 | 15 | 1 | 744790 | ||
| 74479653 |

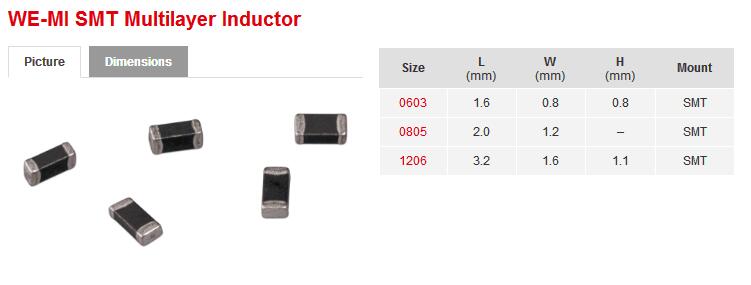

WE-MI SMT Multilayer Inductor
Dimensions
| Size | L (mm) | W (mm) | H (mm) | Mount |
|---|---|---|---|---|
| 0603 | 1.6 | 0.8 | 0.8 | SMT |
| 0805 | 2.0 | 1.2 | – | SMT |
| 1206 | 3.2 | 1.6 | 1.1 | SMT |
Characteristics
Smallest inductor possible for less space needed on the printed circuit board and therefore perfect suitable for high density mounting
No cross coupling because of closed magnetic circuits
No crosstalk
Operating temperature: –55 °C to +125 °C
Applications
Filter switches
Oscillators
Adjustment networks
Discretely built T- or π-Filter
Products
0603
0805
1206
show full screen
| SPEC | Order Code | L1 (µH) | Qmin. | IR 1 (mA) | RDC1 max. (Ω) | Design Kit | Samples |
|---|---|---|---|---|---|---|---|
| 74479014 | 0.047 | 20 | 300 | 0.2 | 744790 | ||
| 7447902 | 0.1 | 20 | 250 | 0.3 | 744790 | ||
| 74479021 | 0.1 | 20 | 250 | 0.2 | |||
| 74479022 | 0.15 | 20 | 250 | 0.4 | |||
| 74479023 | 0.22 | 20 | 250 | 0.5 | 744790 | ||
| 74479027 | 0.27 | 20 | 250 | 0.5 | |||
| 7447903 | 0.33 | 20 | 250 | 0.5 | 744790 | ||
| 74479032 | 0.47 | 25 | 200 | 0.6 | 744790 | ||
| 74479035 | 0.56 | 25 | 150 | 0.7 | |||
| 7447904 | 0.68 | 25 | 150 | 0.8 | |||
| 74479045 | 0.82 | 25 | 150 | 1 | |||
| 7447905 | 1 | 45 | 50 | 0.4 | 744790 | ||
| 744790515 | 1.5 | 45 | 50 | 0.5 | 744790 | ||
| 74479051 | 1.8 | 45 | 50 | 0.6 | |||
| 74479052 | 2.2 | 45 | 30 | 0.6 | 744790 | ||
| 74479053 | 3.3 | 45 | 30 | 0.8 | 744790 | ||
| 7447906 | 4.7 | 45 | 30 | 1 | 744790 | ||
| 74479056 | 5.6 | 50 | 15 | 0.9 | |||
| 74479068 | 6.8 | 50 | 15 | 1 | |||
| 744790282 | 8.2 | 50 | 15 | 1 | |||
| 7447908 | 10 | 50 | 15 | 1 | 744790 | ||
| 74479081 | 12 | 50 | 15 | 1.1 | 744790 |
| SPEC | Order Code | L1 (µH) | Qmin. | IR 1 (mA) | RDC1 max. (Ω) | Design Kit | Samples |
|---|---|---|---|---|---|---|---|
| 74479014 | 0.047 | 20 | 300 | 0.2 | 744790 | ||
| 7447902 | 0.1 | 20 | 250 | 0.3 | 744790 | ||
| 74479021 | 0.1 | 20 | 250 | 0.2 | |||
| 74479022 | 0.15 | 20 | 250 | 0.4 | |||
| 74479023 | 0.22 | 20 | 250 | 0.5 | 744790 | ||
| 74479027 | 0.27 | 20 | 250 | 0.5 | |||
| 7447903 | 0.33 | 20 | 250 | 0.5 | 744790 | ||
| 74479032 | 0.47 | 25 | 200 | 0.6 | 744790 | ||
| 74479035 | 0.56 | 25 | 150 | 0.7 | |||
| 7447904 | 0.68 | 25 | 150 | 0.8 | |||
| 74479045 | 0.82 | 25 | 150 | 1 | |||
| 7447905 | 1 | 45 | 50 | 0.4 | 744790 | ||
| 744790515 | 1.5 | 45 | 50 | 0.5 | 744790 | ||
| 74479051 |
| 74479114 | 0.047 | 20 | 300 | 0.15 | |||
| 7447912 | 0.1 | 20 | 250 | 0.25 | 744790 | ||
| 74479122 | 0.15 | 20 | 250 | 0.3 | |||
| 744791220 | 0.22 | 20 | 250 | 0.4 | 744790 | ||
| 7447913 | 0.33 | 20 | 250 | 0.5 | |||
| 74479132 | 0.47 | 25 | 200 | 0.6 | 744790 | ||
| 74479136 | 0.68 | 25 | 150 | 0.8 | |||
| 7447915 | 1 | 45 | 100 | 0.4 | 744790 | ||
| 74479142 | 1.2 | 45 | 100 | 0.5 | |||
| 74479145 | 1.5 | 45 | 50 | 0.5 | 744790 | ||
| 74479148 | 1.8 | 45 | 50 | 0.5 | |||
| 74479152 | 2.2 | 45 | 50 | 0.6 | 744790 | ||
| 74479157 | 2.7 | 45 | 50 | 0.6 | 744790 | ||
| 74479153 |
