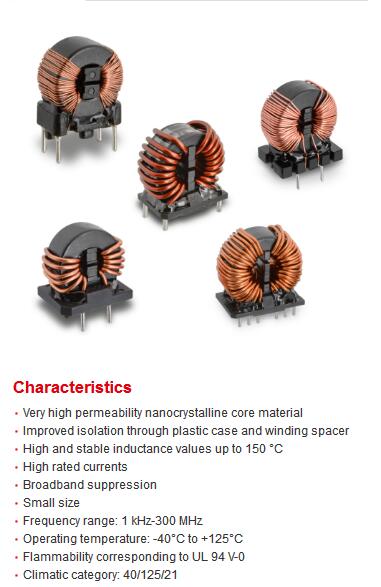

Wurth ԭװ��7448011008

��ʱ��: 2018/12/28 226 �� Դ��


show full screen

SPEC	Order Code	Simu- lation	L₁ (mH)	I_{R 1} (A)	R_{DC1 max.} (m��)	U_R (V (AC))	U_{T 1} (V (AC))	Files	Design Kit	Samples
PDF	7448014501	RE	0.4	4.5	22	250	1500	7448014501 (rev1).stp7448014501 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448013501	RE	0.5	3.5	33	250	1500	7448013501 (rev1).stp7448013501 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448012501	RE	1	2.5	55	250	1500	7448012501 (rev1).stp7448012501 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448012002	RE	1.6	2	90	250	1500	7448012002 (rev1).stp7448012002 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448011305	RE	5	1.3	200	250	1500	7448011305 (rev1).stp7448011305 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448011008	RE	8	1	330	250	1500	7448011008 (rev1).stp7448011008 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448010911	RE	11	0.9	430	250	1500	7448010911 (rev1).stp7448010911 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800

SPEC	Order Code	Simu- lation	L₁ (mH)	I_{R 1} (A)	R_{DC1 max.} (m��)	U_R (V (AC))	U_{T 1} (V (AC))	Files	Design Kit	Samples
PDF	7448014501	RE	0.4	4.5	22	250	1500	7448014501 (rev1).stp7448014501 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448013501	RE	0.5	3.5	33	250	1500	7448013501 (rev1).stp7448013501 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448012501	RE	1	2.5	55	250	1500	7448012501 (rev1).stp7448012501 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448012002	RE	1.6	2	90	250	1500	7448012002 (rev1).stp7448012002 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448011305	RE	5	1.3	200	250	1500	7448011305 (rev1).stp7448011305 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448011008	RE	8	1	330	250	1500	7448011008 (rev1).stp7448011008 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	744801091

Type XS
Type S
Type M
Type L
Type XL
Type XXL

show full screen

SPEC	Order Code	Simu- lation	L₁ (mH)	I_{R 1} (A)	R_{DC1 max.} (m��)	U_R (V (AC))	U_{T 1} (V (AC))	Samples
PDF	7448027001	�C	1	7	6	250	1500
PDF	7448026002	�C	1.5	6	8	250	1500
PDF	7448025003	�C	2.5	5	15	250	1500
PDF	7448024503	�C	3	4.5	22	250	1500
PDF	7448023005	�C	5	3	40	250	1500
PDF	7448022010	�C	10	2	85	250	1500
PDF	7448021230	�C	30	1.2	280	250	1500
PDF	7448020680	RE	80	0.6	1000	250	1500

SPEC	Order Code	Simu- lation	L₁ (mH)	I_{R 1} (A)	R_{DC1 max.} (m��)	U_R (V (AC))	U_{T 1} (V (AC))	Samples
PDF	7448027001	�C	1	7	6	250	1500
PDF	7448026002	�C	1.5	6	8	250	1500
PDF	7448025003	�C	2.5	5	15	250	1500
PDF	7448024503	�C	3	4.5	22	250	1500
PDF	7448023005	�C	5	3	40	250	1500
PDF	7448022010	�C	10	2	85	250	1500
PDF	7448021230	�C	30	1.2	280	250	1500
PDF	7448020680

Type XS
Type S
Type M
Type L
Type XL
Type XXL

show full screen

SPEC	Order Code	Simu- lation	L₁ (mH)	I_{R 1} (A)	R_{DC1 max.} (m��)	U_R (V (AC))	U_{T 1} (V (AC))	Files	Design Kit	Samples
PDF	7448031501	RE	1	15	3.3	250	1500	7448031501 (rev1).stp7448031501 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448031002	RE	2	10	6	250	1500	7448031002 (rev1).stp7448031002 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448030509	RE	9	5	28	250	1500	7448030509 (rev1).stp7448030509 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448030417	RE	17	4	50	250	1500	7448030417 (rev1).stp7448030417 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448030333	RE	33	2.5	90	250	1500	7448030333 (rev1).stp7448030333 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800

SPEC	Order Code	Simu- lation	L₁ (mH)	I_{R 1} (A)	R_{DC1 max.} (m��)	U_R (V (AC))	U_{T 1} (V (AC))	Files	Design Kit	Samples
PDF	7448031501	RE	1	15	3.3	250	1500	7448031501 (rev1).stp7448031501 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448031002	RE	2	10	6	250	1500	7448031002 (rev1).stp7448031002 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448030509	RE	9	5	28	250	1500	7448030509 (rev1).stp7448030509 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448030417	RE	17	4	50	250	1500	7448030417 (rev1).stp7448030417 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448030333	RE

Type XS
Type S
Type M
Type L
Type XL
Type XXL

show full screen

SPEC	Order Code	Simu- lation	L₁ (mH)	I_{R 1} (A)	R_{DC1 max.} (m��)	U_R (V (AC))	U_{T 1} (V (AC))	Files	Design Kit	Samples
PDF	7448042001	RE	1	20	2.4	250	1500	7448042001 (rev1).stp7448042001 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448041801	RE	1.5	18	3.2	250	1500	7448041801 (rev1).stp7448041801 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448041502	RE	2	15	5	250	1500	7448041502 (rev1).stp7448041502 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744824
PDF	7448041104	RE	4	11	8.5	250	1500	7448041104 (rev1).stp7448041104 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744824
PDF	7448040707	RE	7	7	20	250	1500	7448040707 (rev1).stp7448040707 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448040515	RE	15	5	38	250	1500	7448040515 (rev1).stp7448040515 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744824
PDF	7448040435	RE	35	3.5	80	250	1500	7448040435 (rev1).stp7448040435 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744824
PDF	7448040382	RE	82	2.5	170	250	1500	7448040382 (rev1).stp7448040382 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800

SPEC	Order Code	Simu- lation	L₁ (mH)	I_{R 1} (A)	R_{DC1 max.} (m��)	U_R (V (AC))	U_{T 1} (V (AC))	Files	Design Kit	Samples
PDF	7448042001	RE	1	20	2.4	250	1500	7448042001 (rev1).stp7448042001 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448041801	RE	1.5	18	3.2	250	1500	7448041801 (rev1).stp7448041801 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448041502	RE	2	15	5	250	1500	7448041502 (rev1).stp7448041502 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744824
PDF	7448041104	RE	4	11	8.5	250	1500	7448041104 (rev1).stp7448041104 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744824
PDF	7448040707	RE	7	7	20	250	1500	7448040707 (rev1).stp7448040707 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448040515	RE	15	5	38	250	1500	7448040515 (rev1).stp7448040515 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744824
PDF	7448040435	RE	35	3.5	80	250	1500	7448040435 (rev1).stp7448040435 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744824
PDF	7448040382

Type XS
Type S
Type M
Type L
Type XL
Type XXL

show full screen

SPEC	Order Code	Simu- lation	L₁ (mH)	I_{R 1} (A)	R_{DC1 max.} (m��)	U_R (V (AC))	U_{T 1} (V (AC))	Files	Design Kit	Samples
PDF	7448053201	RE	0.9	32	1.1	250	1500	7448053201 (rev1).stp7448053201 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448052502	RE	2.5	25	2.2	250	1500	7448052502 (rev1).stp7448052502 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448052303	RE	3	23	3	250	1500	7448052303 (rev1).stp7448052303 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448051804	RE	4.5	18	4.2	250	1500	7448051804 (rev1).stp7448051804 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448051012	RE	12	10	15	250	1500	7448051012 (rev1).stp7448051012 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448050530	RE	30	5	46	250	1500	7448050530 (rev1).stp7448050530 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448050490	RE	90	3.5	110	250	1500	7448050490 (rev1).stp7448050490 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448050219	RE	190	2	310	250	1500	7448050219 (rev1).stp7448050219 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800

SPEC	Order Code	Simu- lation	L₁ (mH)	I_{R 1} (A)	R_{DC1 max.} (m��)	U_R (V (AC))	U_{T 1} (V (AC))	Files	Design Kit	Samples
PDF	7448053201	RE	0.9	32	1.1	250	1500	7448053201 (rev1).stp7448053201 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448052502	RE	2.5	25	2.2	250	1500	7448052502 (rev1).stp7448052502 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448052303	RE	3	23	3	250	1500	7448052303 (rev1).stp7448052303 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448051804	RE	4.5	18	4.2	250	1500	7448051804 (rev1).stp7448051804 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448051012	RE	12	10	15	250	1500	7448051012 (rev1).stp7448051012 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448050530	RE	30	5	46	250	1500	7448050530 (rev1).stp7448050530 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448050490	RE	90	3.5	110	250	1500	7448050490 (rev1).stp7448050490 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448050219

Type XS
Type S
Type M
Type L
Type XL
Type XXL

show full screen

SPEC	Order Code	Simu- lation	L₁ (mH)	I_{R 1} (A)	R_{DC1 max.} (m��)	U_R (V (AC))	U_{T 1} (V (AC))	Files	Design Kit	Samples
PDF	7448063801	RE	1.5	38	2.3	250	1500	7448063801 (rev1).stp7448063801 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448062603	RE	3	26	4.5	250	1500	7448062603 (rev1).stp7448062603 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448062105	RE	5	21	6.5	250	1500	7448062105 (rev1).stp7448062105 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448061507	RE	7	15	9.5	250	1500	7448061507 (rev1).stp7448061507 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448061309	RE	9	13	15	250	1500	7448061309 (rev1).stp7448061309 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448060814	RE	14	8	27	250	1500	7448060814 (rev1).stp7448060814 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448060620	RE	20	6	45	250	1500	7448060620 (rev1).stp7448060620 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448060535	RE	35	5	90	250	1500	7448060535 (rev1).stp7448060535 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800

SPEC	Order Code	Simu- lation	L₁ (mH)	I_{R 1} (A)	R_{DC1 max.} (m��)	U_R (V (AC))	U_{T 1} (V (AC))	Files	Design Kit	Samples
PDF	7448063801	RE	1.5	38	2.3	250	1500	7448063801 (rev1).stp7448063801 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448062603	RE	3	26	4.5	250	1500	7448062603 (rev1).stp7448062603 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448062105	RE	5	21	6.5	250	1500	7448062105 (rev1).stp7448062105 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448061507	RE	7	15	9.5	250	1500	7448061507 (rev1).stp7448061507 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448061309	RE	9	13	15	250	1500	7448061309 (rev1).stp7448061309 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip	744800
PDF	7448060814	RE	14	8	27	250	1500	7448060814 (rev1).stp7448060814 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448060620	RE	20	6	45	250	1500	7448060620 (rev1).stp7448060620 (rev1).igsDownload_EMC-Components_LTspice (rev18b)(2).zipDownload_PSPICE_EMC-Components (rev18a)(2).zip
PDF	7448060535
