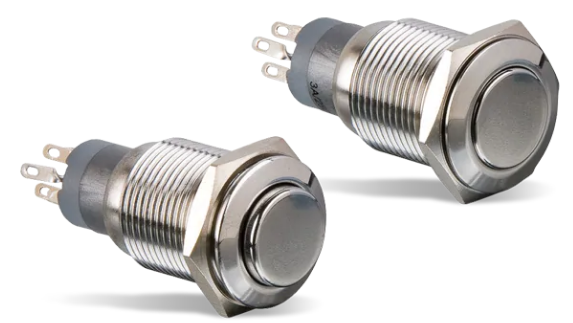

Bulgin MP0045 Stainless Steel Vandal Proof Switches are manufactured from stainless steel and are designed with a high resistance to wear and tear, corrosion, and harsh use in potentially hostile environments. The switches are available in low and prominent button profiles with a choice of latching or momentary switching. Features include an operating temperature range of -20¡ãC to +55¡ãC, a dielectric strength of less than 2.0kVAC, and an insulation resistance of less than 103M¦¸ at 500VAC. Illuminated versions are available in dot and ring LED indication with a variety of color options (red, green, amber, or blue).

SPECIFICATIONS

Common Specifications

Terminations: Solder Tags

Sealing: IP67 (/S), IP40 (Blank)

Operating Temperature Range: -20¡ãC to +55¡ãC

Dielectric Strength: >2.0kVAC

Insulation Resistance: >103M¦¸ at 500VAC

Rear Nut Fixing Torque: 12Nm

Bezel Diameter: 18mm

Mechanical Operations: 200,000 Min.

Electrical Operations: 30,000 Min.

Moldings: Nylon

Tags: Brass, Silver Plated

Switch Body and Button: Stainless Steel

RoHS Compliant

Illuminated Switches

Switch Rating: 3A, 250VAC

Contact Resistance: 50m¦¸ Max. at 1A, 2VDC

Non-Illuminated Switches

Rating: 250VAC Max.

Contact Resistance: 50m¦¸ Max. at 1A, 2V

APPLICATIONS

Access Control

Industrial and Harsh Environment

MP0045/1D0NN000S

MP0045/1D1AM012S

MP0045/1D1AM220S

MP0045/1D1BL012S

MP0045/1D1BL220S

MP0045/1D1GN012S

MP0045/1D1GN220S

MP0045/1D1RD012S

MP0045/1D1RD220S

MP0045/1D2AM012S

MP0045/1D2AM220S

MP0045/1D2BL012S

MP0045/1D2BL220S

MP0045/1D2GN012S

MP0045/1D2GN220S

MP0045/1D2RD012S

MP0045/1D2RD220S

MP0045/1E0NN000S

MP0045/1E1AM012S

MP0045/1E1AM220S

MP0045/1E1BL012S

MP0045/1E1BL220S

MP0045/1E1GN012S

MP0045/1E1GN220S

MP0045/1E1RD012S

MP0045/1E1RD220S

MP0045/1E2AM012S

MP0045/1E2AM220S

MP0045/1E2BL012S

MP0045/1E2BL220S

MP0045/1E2GN012S

MP0045/1E2GN220S

MP0045/1E2RD012S

MP0045/1E2RD220S

MP0045/3D0NN000S

MP0045/3E0NN000S
