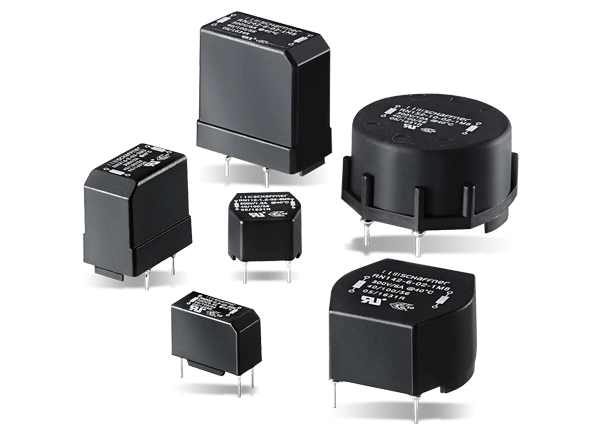

Schaffner RN Series current-compensated EMC/EMI Chokes attenuate common-mode or asymmetric (P/N to E) interference signals via connection to an AC powerline input. Features and benefits of Schaffner's RN Series current-compensated Chokes include high saturation resistance and excellent thermal behavior, through-hole pin connections, dual-choke configuration, small compact design, multiple housing options, and custom-specific versions available upon request. These chokes offer rated currents from 0.3 to 10A, DC to 1kHz frequency, and 100kHz to 3MHz common-mode resonance frequency. Typical applications for RN Series Chokes are phase-angle control circuits in combination with saturating chokes, EMI input filters, suppressing equipment with no earth connection, and suppressing high interference levels.
FEATURES
High saturation resistance and excellent thermal behavior
Through hole pin connections
Dual-choke configuration
Small compact design
Multiple housing options
Custom-specific versions are available on request
Higher temperature versions
APPLICATIONS
Switch-mode power applications
Suppressing common-mode interference levels
EMI input filters
For suppression equipment with no earth connection
Phase-angle control circuits in combination with saturating chokes
Schaffner:
RN102-2-02 RN152-10-02 RN114-4-02 RN122-4-02 RN112-4-02 RN102-1-02 RN112-1.5-02 RN212-1.2-02
RN214-4-02 RN222-2.5-02 RN114-2-02 RN202-2-02 RN212-2-02 RN122-1.5-02 RN152-6-02 RN112-0.6-02
RN142-6-02 RN202-1.5-02 RN114-2.5-02 RN222-3-02 RN214-3-02 RN114-3-02 RN214-2-02 RN222-1-02
RN222-2-02 RN242-1.4-02 RN122-2-02 RN212-1.5-02 RN152-4-02 RN102-1.5-02 RN122-0.6-02 RN212-0.6-02
RN212-0.8-02 RN114-1-02 RN114-1.5-02 RN202-0.3-02 RN242-4-02 RN112-0.8-02 RN112-0.5-02 RN114-0.8-02
RN114-0.3-02 RN122-2.5-02 RN212-0.5-02 RN212-0.4-02 RN202-0.6-02 RN122-3-02 RN152-8-02 RN112-1.2-02
RN143-2-02 RN222-4-02 RN112-2-02 RN122-0.8-02 RN102-0.3-02 RN114-1.2-02 RN242-6-02 RN102-0.6-02
RN212-4-02 RN214-2.5-02 RN202-1-02 RN214-0.8-02 RN112-0.4-02 RN114-0.5-02 RN122-1-02 RN122-1-02-1
RN122-4-02-1 RN142-0.5-02 RN142-1-02 RN142-1.4-02 RN142-2-02 RN142-4-02 RN143-0.5-02 RN143-1-02
RN143-4-02 RN143-6-02 RN152-1-02 RN152-2-02 RN214-0.3-02 RN214-0.5-02 RN214-0.5-02-56 RN214-1-02
RN214-1.2-02 RN214-1.5-02 RN222-0.6-02 RN222-0.8-02 RN222-1.5-02 RN232-0.6-02 RN232-1-02 RN232-1.6-
02 RN232-2.5-02 RN232-4-02 RN242-0.5-02 RN242-1-02 RN242-2-02 RN122-0.8-02-39M RN116-1.5-02-10M
RN116-2-02-2M2 RN102-0.3-02-12M RN114-1.2-02-10M RN116-1-02-10M RN216-0.5-02-39M
