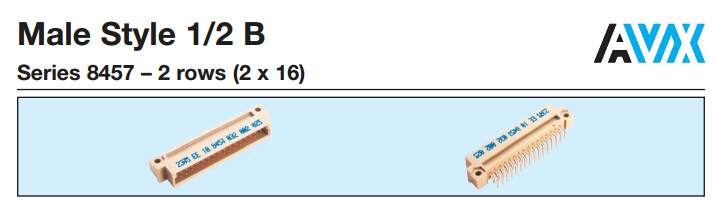

AVX 8457系列DIN 41612 连接器原装 快速发货
原装，1pcs起订.我们承诺：“所有产品均为原厂新品，100%保证质量！30天内有任何质量问题随时包退换！”我们实践自己的承诺，为自己的所有行动和结果承担责任。
10 8457 032 001 025 10 8457 032 001 049
10 8457 032 001 031 10 8457 032 001 055
10 8457 032 001 027 10 8457 032 001 051
10 8457 032 002 025 10 8457 032 002 049
10 8457 032 002 031 10 8457 032 002 055
10 8457 032 002 027 10 8457 032 002 051
10 8457 032 102 025 10 8457 032 102 049
10 8457 032 003 025 10 8457 032 003 049
10 8457 032 003 031 10 8457 032 003 055
10 8457 032 003 027 10 8457 032 003 051
32 a + b fully loaded 10 8457 032 004 025 10 8457 032 004 049
11.3 mm (Y) 16 a + b even loading 10 8457 032 004 031 10 8457 032 004 055
Right Angled 16 a loading only 10 8457 032 004 027 10 8457 032 004 051
32 a + b fully loaded 10 8457 032 008 025 10 8457 032 008 049
16 a + b even loading 10 8457 032 008 031 10 8457 032 008 055
2.3 mm (Y) 16 a loading only 10 8457 032 008 027 10 8457 032 008 051
Right Angled 30 + 2 fully loaded + ground 10 8457 032 108 025 10 8457 032 108 049
32 a + b fully loaded 20 8457 032 001 025 20 8457 032 001 049
0.6 x 0.6 mm post profile 16 a + b even loading 20 8457 032 001 031 20 8457 032 001 055
4.5 mm (Y) Straight 16 a loading only 20 8457 032 001 027 20 8457 032 001 051
32 a + b fully loaded 20 8457 032 002 025 20 8457 032 002 049
0.6 x 0.6 mm post profile 16 a + b even loading 20 8457 032 002 031 20 8457 032 002 055
2.9 mm (Y) Straight 16 a loading only 20 8457 032 002 027 20 8457 032 002 051
32 a + b fully loaded 20 8457 032 005 025 20 8457 032 005 049
0.6 x 0.6 mm post profile 16 a + b even loading 20 8457 032 005 031 20 8457 032 005 055
13.0 mm (Y) Straight 16 a loading only 20 8457 032 005 027 20 8457 032 005 051
32 a + b fully loaded 20 8457 032 010 025 20 8457 032 010 049
0.6 x 0.6 mm post profile 16 a + b even loading 20 8457 032 010 031 20 8457 032 010 055
7.0 mm (Y) Straight 16 a loading only 20 8457 032 010 027 20 8457 032 010 051
32 a + b even loading 20 8457 032 011 025 20 8457 032 011 049
0.6 x 0.6 mm post profile 16 a + b fully loaded 20 8457 032 011 031 20 8457 032 011 055
3.5 mm (Y) Straight 16 a loading only 20 8457 032 011 027 20 8457 032 011 051
32 a + b fully loaded 20 8457 032 012 025 20 8457 032 012 049
0.6 x 0.6 mm post profile 16 a + b even loading 20 8457 032 012 031 20 8457 032 012 055
19.4 mm (Y) Straight 16 a loading only 20 8457 032 012 027 20 8457 032 012 051
32 a + b fully loaded 20 8457 032 013 025 20 8457 032 013 049
0.6 x 0.6 mm post profile 16 a + b even loading 20 8457 032 013 031 20 8457 032 013 055
4.5 mm (Y) Right Angled 16 a loading only 20 8457 032 013 027 20 8457 032 013 051
64 a + b fully loaded 10 8457 064 001 025 10 8457 064 001 049
3.4 mm (Y) 32 a + b even loading 10 8457 064 001 031 10 8457 064 001 055
Straight 32 a loading only 10 8457 064 001 027 10 8457 064 001 051
64 a + b fully loaded 10 8457 064 002 025 10 8457 064 002 049
32 a + b even loading 10 8457 064 002 031 10 8457 064 002 055
3.0 mm (Y) 32 a loading only 10 8457 064 002 027 10 8457 064 002 051
Right Angled 62 + 2 fully loaded + ground 10 8457 064 102 025 10 8457 064 102 049
64 a + b fully loaded 10 8457 064 003 025 10 8457 064 003 049
13.0 mm (Y) 32 a + b even loading 10 8457 064 003 031 10 8457 064 003 055
Straight 32 a loading only 10 8457 064 003 027 10 8457 064 003 051
64 a + b fully loaded 10 8457 064 004 025 10 8457 064 004 049
11.3 mm (Y) 32 a + b even loading 10 8457 064 004 031 10 8457 064 004 055
Right Angled 32 a loading only 10 8457 064 004 027 10 8457 064 004 051
64 a + b fully loaded 10 8457 064 008 025 10 8457 064 008 049
32 a + b even loading 10 8457 064 008 031 10 8457 064 008 055
2.3 mm (Y) 32 a loading only 10 8457 064 008 027 10 8457 064 008 051
Right Angled 62 + 2 fully loaded + ground 10 8457 064 108 025 10 8457 064 108 049
Termination Length Contacts Loading Description II I
64 a + b fully loaded 20 8457 064 001 025 20 8457 064 001 049
0.6 x 0.6 mm Post Profile 32 a + b even loading 20 8457 064 001 031 20 8457 064 001 055
4.5 mm (Y) Straight 32 a loading only 20 8457 064 001 027 20 8457 064 001 051
64 a + b fully loaded 20 8457 064 002 025 20 8457 064 002 049
0.6 x 0.6 mm Post Profile 32 a + b even loading 20 8457 064 002 031 20 8457 064 002 055
2.9 mm (Y) Straight 32 a loading only 20 8457 064 002 027 20 8457 064 002 051
64 a + b fully loaded 20 8457 064 005 025 20 8457 064 005 049
0.6 x 0.6 mm Post Profile 32 a + b even loading 20 8457 064 005 031 20 8457 064 005 055
13.0 mm (Y) Straight 32 a loading only 20 8457 064 005 027 20 8457 064 005 051
64 a + b fully loaded 20 8457 064 010 025 20 8457 064 010 049
0.6 x 0.6 mm Post Profile 32 a + b even loading 20 8457 064 010 031 20 8457 064 010 055
7.0 mm (Y) Straight 32 a loading only 20 8457 064 010 027 20 8457 064 010 051
64 a + b fully loaded 20 8457 064 011 025 20 8457 064 011 049
0.6 x 0.6 mm Post Profile 32 a + b even loading 20 8457 064 011 031 20 8457 064 011 055
3.5 mm (Y) Straight 32 a loading only 20 8457 064 011 027 20 8457 064 011 051
64 a + b fully loaded 20 8457 064 012 025 20 8457 064 012 049
0.6 x 0.6 mm Post Profile 32 a + b even loading 20 8457 064 012 031 20 8457 064 012 055
19.4 mm (Y) Straight 32 a loading only 20 8457 064 012 027 20 8457 064 012 051
64 a + b fully loaded 20 8457 064 013 025 20 8457 064 013 049
0.6 x 0.6 mm Post Profile 32 a + b even loading 20 8457 064 013 031 20 8457 064 013 055
4.5 mm (Y) Right Angled 32 a loading only 20 8457 064 013 027 20 8457 064 013 051
Termination Length Contacts Loading Description II I
30 a + b + c fully loaded 10 8457 030 001 025 10 8457 030 001 049
3.4 mm (Y) 20 a + c fully loaded 10 8457 030 001 026 10 8457 030 001 050
Straight
30 a + b + c fully loaded 10 8457 030 002 025 10 8457 030 002 049
3.0 mm (Y) 20 a + c fully loaded 10 8457 030 002 026 10 8457 030 002 050
Right Angled 28 + 2 fully loaded + ground 10 8457 030 102 025 10 8457 030 102 049
13.0 mm (Y) 30 a + b + c fully loaded 10 8457 030 003 025 10 8457 030 003 049
Straight 20 a + c fully loaded 10 8457 030 003 026 10 8457 030 003 050
11.3 mm (Y) 30 a + b + c fully loaded 10 8457 030 004 025 10 8457 030 004 049
Right Angled 20 a + c fully loaded 10 8457 030 004 026 10 8457 030 004 050
30 a + b + c fully loaded 10 8457 030 008 025 10 8457 030 008 049
2.3 mm (Y) 20 a + c fully loaded 10 8457 030 008 026 10 8457 030 008 050
Right Angled 28 + 2 fully loaded + ground 10 8457 030 108 025 10 8457 030 108 049
Termination Length Contacts Loading Description II I
0.6 x 0.6 mm Post Profile 30 a + b + c fully loaded 20 8457 030 001 025 20 8457 030 001 049
4.5 mm (Y) Straight 20 a + c fully loaded 20 8457 030 001 026 20 8457 030 001 050
0.6 x 0.6 mm Post Profile 30 a + b + c fully loaded 20 8457 030 002 025 20 8457 030 002 049
2.9 mm (Y) Straight 20 a + c fully loaded 20 8457 030 002 026 20 8457 030 002 050
0.6 x 0.6 mm Post Profile 30 a + b + c fully loaded 20 8457 030 005 025 20 8457 030 005 049
13.0 mm (Y) Straight 20 a + c fully loaded 20 8457 030 005 026 20 8457 030 005 050
0.6 x 0.6 mm Post Profile 30 a + b + c fully loaded 20 8457 030 011 025 20 8457 030 011 049
3.5 mm (Y) Straight 20 a + c fully loaded 20 8457 030 011 026 20 8457 030 011 050
0.6 x 0.6 mm Post Profile 30 a + b + c fully loaded 20 8457 030 013 025 20 8457 030 013 049
4.5 mm (Y) Right Angled 20 a + c fully loaded 20 8457 030 013 026 20 8457 030 013 050
Termination Length Contacts Loading Description II I
48 a + b + c fully loaded 10 8457 048 001 025 10 8457 048 001 049
32 a + c fully loaded 10 8457 048 001 026 10 8457 048 001 050
3.4 mm (Y) 16 a loading only 10 8457 048 001 027 10 8457 048 001 051
Straight
48 a + b + c fully loaded 10 8457 048 002 025 10 8457 048 002 049
32 a + c fully loaded 10 8457 048 002 026 10 8457 048 002 050
3.0 mm (Y) 16 a loading only 10 8457 048 002 027 10 8457 048 002 051
Right Angled 46 + 2 fully loaded + ground 10 8457 048 102 025 10 8457 048 102 049
48 a + b + c fully loaded 10 8457 048 003 025 10 8457 048 003 049
13.0 mm (Y) 32 a + c fully loaded 10 8457 048 003 026 10 8457 048 003 050
Straight 16 a loading only 10 8457 048 003 027 10 8457 048 003 051
48 a + b + c fully loaded 10 8457 048 004 025 10 8457 048 004 049
11.3 mm (Y) 32 a + c fully loaded 10 8457 048 004 026 10 8457 048 004 050
Right Angled 16 a loading only 10 8457 048 004 027 10 8457 048 004 051
48 a + b + c fully loaded 10 8457 048 008 025 10 8457 048 008 049
32 a + c fully loaded 10 8457 048 008 026 10 8457 048 008 050
2.3 mm (Y) 16 a loading only 10 8457 048 008 027 10 8457 048 008 051
Right Angled 46 + 2 fully loaded + ground 10 8457 048 108 025 10 8457 048 108 049
Termination Length Contacts Loading Description II I
48 a + b + c fully loaded 20 8457 048 001 025 20 8457 048 001 049
0.6 x 0.6 mm Post Profile 32 a + c fully loaded 20 8457 048 001 026 20 8457 048 001 050
4.5 mm (Y) Straight 16 a loading only 20 8457 048 001 027 20 8457 048 001 051
48 a + b + c fully loaded 20 8457 048 002 025 20 8457 048 002 049
0.6 x 0.6 mm Post Profile 32 a + c fully loaded 20 8457 048 002 026 20 8457 048 002 050
2.9 mm (Y) Straight 16 a loading only 20 8457 048 002 027 20 8457 048 002 051
48 a + b + c fully loaded 20 8457 048 005 025 20 8457 048 005 049
0.6 x 0.6 mm Post Profile 32 a + c fully loaded 20 8457 048 005 026 20 8457 048 005 050
13.0 mm (Y) Straight 16 a loading only 20 8457 048 005 027 20 8457 048 005 051
48 a + b + c fully loaded 20 8457 048 010 025 20 8457 048 010 049
0.6 x 0.6 mm Post Profile 32 a + c fully loaded 20 8457 048 010 026 20 8457 048 010 050
7.0 mm (Y) Straight 16 a loading only 20 8457 048 010 027 20 8457 048 010 051
48 a + b + c fully loaded 20 8457 048 011 025 20 8457 048 011 049
0.6 x 0.6 mm Post Profile 32 a + c fully loaded 20 8457 048 011 026 20 8457 048 011 050
3.5 mm (Y) Straight 16 a loading only 20 8457 048 011 027 20 8457 048 011 051
48 a + b + c fully loaded 20 8457 048 012 025 20 8457 048 012 049
0.6 x 0.6 mm Post Profile 32 a + c fully loaded 20 8457 048 012 026 20 8457 048 012 050
19.4 mm (Y) Straight 16 a loading only 20 8457 048 012 027 20 8457 048 012 051
48 a + b + c fully loaded 20 8457 048 013 025 20 8457 048 013 049
0.6 x 0.6 mm Post Profile 32 a + c fully loaded 20 8457 048 013 026 20 8457 048 013 050
4.5 mm (Y) Right Angled 16 a loading only 20 8457 048 013 027 20 8457 048 013 051
Termination Length Contacts Loading Description II I
96 a + b + c fully loaded 10 8457 096 001 025 10 8457 096 001 049
64 a + c fully loaded 10 8457 096 001 026 10 8457 096 001 050
32 a + c even loading 10 8457 096 001 033 10 8457 096 001 057
3.4 mm (Y) 32 a loading only 10 8457 096 001 027 10 8457 096 001 051
Straight
96 a + b + c fully loaded 10 8457 096 002 025 10 8457 096 002 049
64 a + c fully loaded 10 8457 096 002 026 10 8457 096 002 050
32 a + c even loading 10 8457 096 002 033 10 8457 096 002 057
3.0 mm (Y) 32 a loading only 10 8457 096 002 027 10 8457 096 002 051
Right Angled
96 a + b + c fully loaded 10 8457 096 003 025 10 8457 096 003 049
64 a + c fully loaded 10 8457 096 003 026 10 8457 096 003 050
13.0 mm (Y) 32 a + c even loading 10 8457 096 003 033 10 8457 096 003 057
Straight 32 a loading only 10 8457 096 003 027 10 8457 096 003 051
96 a + b + c fully loaded 10 8457 096 004 025 10 8457 096 004 049
64 a + c fully loaded 10 8457 096 004 026 10 8457 096 004 050
11.3mm (Y) 32 a + c even loading 10 8457 096 004 033 10 8457 096 004 057
Right Angled 32 a loading only 10 8457 096 004 027 10 8457 096 004 051
96 a + b + c fully loaded 10 8457 096 006 025 10 8457 096 006 049
64 a + c fully loaded 10 8457 096 006 026 10 8457 096 006 050
7.7 mm (Y) 32 a + c even loading 10 8457 096 006 033 10 8457 096 006 057
Solder Hole 32 a loading only 10 8457 096 006 027 10 8457 096 006 051
96 a + b + c fully loaded 10 8457 096 007 025 10 8457 096 007 049
64 a + c fully loaded 10 8457 096 007 026 10 8457 096 007 050
6.4 mm (Y) 32 a + c even loading 10 8457 096 007 033 10 8457 096 007 057
Solder Loop 32 a loading only 10 8457 096 007 027 10 8457 096 007 051
96 a + b + c fully loaded 10 8457 096 008 025 10 8457 096 008 049
64 a + c fully loaded 10 8457 096 008 026 10 8457 096 008 050
32 a + c even loading 10 8457 096 008 033 10 8457 096 008 057
2.3 mm (Y) 32 a loading only 10 8457 096 008 027 10 8457 096 008 051
Termination Length Contacts Loading Description II I
96 a + b + c fully loaded 20 8457 096 001 025 20 8457 096 001 049
64 a + c fully loaded 20 8457 096 001 026 20 8457 096 001 050
0.6 x 0.6 mm Post Profile 32 a + c even loading 20 8457 096 001 033 20 8457 096 001 057
4.5 mm (Y) Straight 32 a loading only 20 8457 096 001 027 20 8457 096 001 051
96 a + b + c fully loaded 20 8457 096 002 025 20 8457 096 002 049
64 a + c fully loaded 20 8457 096 002 026 20 8457 096 002 050
0.6 x 0.6 mm Post Profile 32 a + c even loading 20 8457 096 002 033 20 8457 096 002 057
2.9 mm (Y) Straight 32 a loading only 20 8457 096 002 027 20 8457 096 002 051
96 a + b + c fully loaded 20 8457 096 005 025 20 8457 096 005 049
64 a + c fully loaded 20 8457 096 005 026 20 8457 096 005 050
0.6 x 0.6 mm Post Profile 32 a + c even loading 20 8457 096 005 033 20 8457 096 005 057
13.0 mm (Y) Straight 32 a loading only 20 8457 096 005 027 20 8457 096 005 051
96 a + b + c fully loaded 20 8457 096 010 025 20 8457 096 010 049
64 a + c fully loaded 20 8457 096 010 026 20 8457 096 010 050
0.6 x 0.6 mm Post Profile 32 a + c even loading 20 8457 096 010 033 20 8457 096 010 057
7.0 mm (Y) Straight 32 a loading only 20 8457 096 010 027 20 8457 096 010 051
96 a + b + c fully loaded 20 8457 096 011 025 20 8457 096 011 049
64 a + c fully loaded 20 8457 096 011 026 20 8457 096 011 050
0.6 x 0.6 mm Post Profile 32 a + c all even loading 20 8457 096 011 033 20 8457 096 011 057
3.5 mm (Y) Straight 32 a loading only 20 8457 096 011 027 20 8457 096 011 051
96 a + b + c fully loaded 20 8457 096 012 025 20 8457 096 012 049
64 a + c fully loaded 20 8457 096 012 026 20 8457 096 012 050
0.6 x 0.6 mm Post Profile 32 a + c even loading 20 8457 096 012 033 20 8457 096 012 057
19.4 mm (Y) Straight 32 a loading only 20 8457 096 012 027 20 8457 096 012 051
96 a + b + c fully loaded 20 8457 096 013 025 20 8457 096 013 049
64 a + c fully loaded 20 8457 096 013 026 20 8457 096 013 050
0.6 x 0.6 mm Post Profile 32 a + c even loading 20 8457 096 013 033 20 8457 096 013 057
4.5 mm (Y) Right Angled 32 a loading only 20 8457 096 013 027 20 8457 096 013 051
Termination Length Contacts Loading Description II I
3.4 mm (Y) 128 a + b + c + d fully loaded 10 8457 128 001 025 10 8457 128 001 049
Straight 126 + 2 4 rows fully loaded + ground 10 8457 128 101 025 10 8457 128 101 049
3.0 mm (Y) 128 a + b + c + d fully loaded 10 8457 128 002 025 10 8457 128 002 049
Right Angled 126 + 2 4 rows fully loaded + ground 10 8457 128 102 025 10 8457 128 102 049
Termination Length Contacts Loading Description II I
3.4 mm (Y) 160 a + b + c + d + e fully loaded 10 8457 160 001 025 10 8457 160 001 049
Straight 158 + 2 5 rows fully loaded + ground 10 8457 160 101 025 10 8457 160 101 049
3.0 mm (Y) 160 a + b + c + d + e fully loaded 10 8457 160 002 025 10 8457 160 002 049
Right Angled 158 + 2 5 rows fully loaded + ground 10 8457 160 102 025 10 8457 160 102 049
