Amphenol Pcd Rhino 38999 Single Pole High Power Connectors combine the benefits of field proven Mil-DTL-38999 Series III circular connectors with hyperbolic contacts that extend the boundaries of high power connector technology. Designed to meet the latest military and industrial specifications, Rhino 38999 connectors also meet stringent safety requirements.

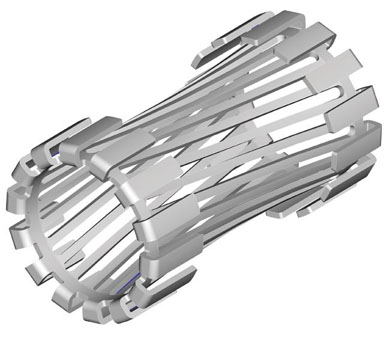

The use of RADSOK contacts in Rhino 38999 connectors creates an electrical interface that exceeds typical interconnect requirements. A hyperbolic socket contact construction distributes normal forces over a high percentage of the mating surface to ensure a smooth and even engagement force with exceptionally high performance under vibration.
The large surface area of the socket contact also results in a very low contact resistance, enabling much higher current ratings compared to other power contact designs. The Rhino 38999 is ideal for high-reliability applications, including vehicular, aerospace, industrial, automation, mining, offshore, and other harsh environments. |
Features Current Rating up to 1000A Operating Voltage up to 630V 38999 Series III mating style with jam-nut, wall-mount and inline connector styles 500+ mating cycle durability Crimp, lug or bus-bar contact termination options available Straight or right angled backshells available for strain relief and 360° EMC/RFI screening Safety IP2X, plastic cap on pin contact to prevent shock Aluminum, Stainless Steel, or Aluminum Bronze shells Temperature range -55°C to +125°C IP68 sealing, plating dependent, 500 Hrs Salt Spray. RoHS compliant Black Zinc Nickel plating as standard, alternative finishes such as Zinc Cobalt also available on request
Applications Harsh environment vehicles Hybrid and electric drive vehicles Military aircraft Naval systems C4I base stations Power distribution modules Communication towers Satellite communications Mass transit
|
WPTV-00ZN21-340-6PNB
