Molex 0.50mm Pitch Easy-On™

Front-Flip FFC/FPC Connectors

Molex 0.50mm Pitch Easy-On™ Front-Flip FFC/FPC Connectors feature a robust Easy-On actuator and cable-tab. The actuator rotates back 115 degrees to provide a wide access area for cable insertion and extraction. The cable-tab feature provides cable guidance and ensures secure retention. Constructed using high-temperature materials, these connectors meet rigorous environmental standards including RoHS and halogen-free requirements.

NEW! - Now available in 1.90mm height

Also available! View all Molex Easy-On™ Front Flip FFC/FPC Connectors

Features

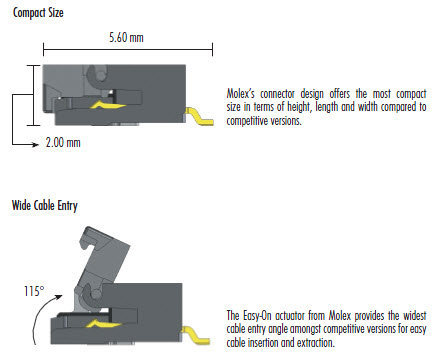

Low profile and compact design offers space savings for flat panel TV and other high-end electronic applications

Cable-retention feature accepts FPC with ears provides cable guidance and secure retention

Easy-On™ actuator opens 115 degrees to facilitate easy cable insertion and extraction

Cost-effective design; meets market requirements for both reliability and cost

High-temperature material; withstands high-and low-temperature environments

Low-Halogen compliant; meets preferred environmental standard level for flat panel TV makers

RoHS compliant

Applications

LCD and PDP Flat Panel Display

Optical Disk Drive

Car Audio

Notebook PC

Tablet PC

Portable Game LCD

Personal Navigation Equipment

Electrical Specifications

Voltage (max.): 50V

Current (max.): 0.5A max.

Contact Resistance: 40 milliohms max.

Dielectric Withstanding Voltage: 150V AC

Insulation Resistance: 50 Megohms minimum

Mechanical Specifications

Durability (min.): 20 cycles

Operating Temperature: -20 to +85¡ãC

Physical Specifications

Housing: Liquid Crystal Polymer, Black

Contact: Phosphor Bronze

Plating:

Contact Area - Gold

Underplating - Nickel

505110-8096

505110-8091

505110-7096

505110-7091

505110-6896

505110-6891

505110-6496

505110-6491

505110-6096

505110-6091

505110-5096

505110-5091

505110-4596

505110-4591

505110-4096

505110-4091

505110-3596

505110-3591

505110-3096

505110-3091

505110-2896

505110-2891

505110-2696

505110-2691

505110-2496

505110-2491

505110-2296

505110-2291

505110-2096

505110-2091

505110-1992

505110-1892

505110-1792

505110-1692

505110-1592

505110-1492

505110-1392

505110-1292

505110-1192

505110-1092

505110-0992

505110-0892

505110-0792

505110-0692

505110-0592

505110-0492
